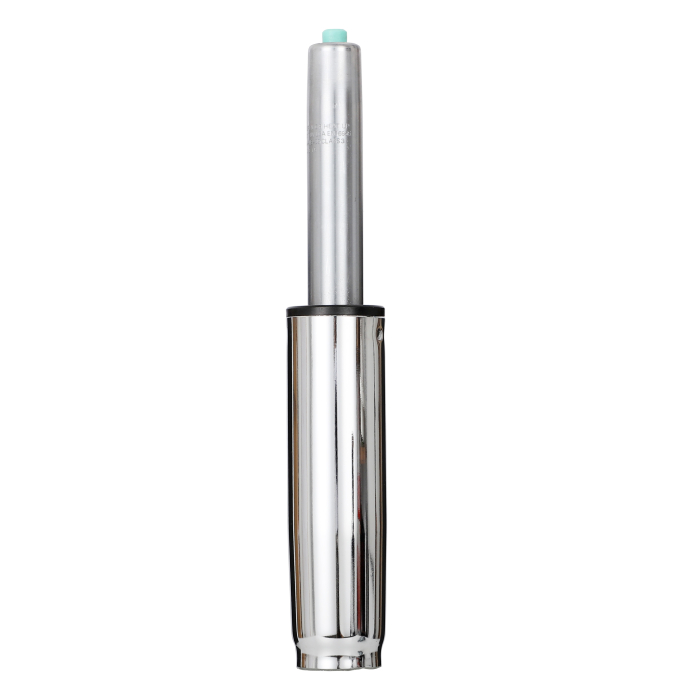

Class 3 Office Chair Pneumatic Gas Lift Cylinder Replacement
We'll ship it to your door with all customs-related fees paid.

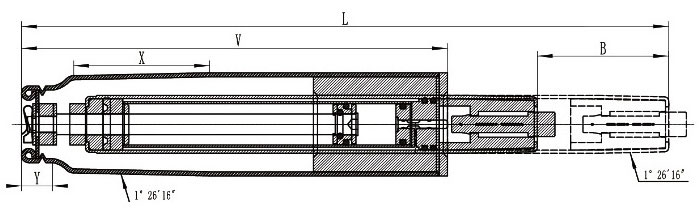

Please refer to the illustration, if the Y - sinking length is less than 20mm, it definetly fits your office chair, just rest assured to buy. This is NOT for tall chairs, like drafting chairs, bar stools.
The pneumatic gas lift cylinder comes with premium quality, made by #1 gas lift factory in China, meets the standard of TUV EN 16955:2017 Class 3 and SGS ANSI/BIFMA X5.1 Office Seating. We strongly recommend that you choose a Class 3 or 4 gas lift cylinder that has thicker tube wall to ensure the safety. This is the original gas lift cylinder for our EOATO ergonomic chair C1, and it is also a universal cylinder for most office chairs, including mesh office chair, leather office chair. You can refer to the following specifications.
L : 240mm/9.45in - 320mm/12.6in
V - Outer tube length: 180mm/7.09in
B - Stroke (adjustable length): 80mm/3.15inch
Y - Sinking length: 15mm/0.59in
Gas lift class: TUV EN 16955:2017 Class 3
Outer tube diameter: 50mm/2in
Inner tube diameter: 28mm/1.1in
| Brand | EOATO |
|---|---|
| Condition | New |
| Color | Silver |
| Country of Manufacture | China |
| Ship from | China |
| Product Warranty | Yes |
| Warranty Length | 5 Years |
| Full or Limited Warranty | Full |
| Overall Width - Side to Side(in) | 9.84 |
| Overall Depth - Front to Back(in) | 2.36 |
| Overall Height - Top to Bottom(in) | 2.36 |
| Overall Product Weight(lb) | 1.98 |
